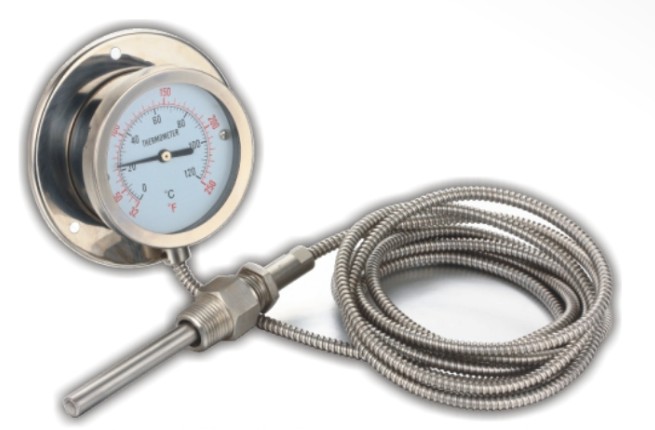

Gas Filled Thermometers
(With Capillary)
Standard Features
Case:304 Stainless steel case with snap-in ‘u’ ring gasketed clear lexan molded window.
Bulb:304 Stainless steel
Capillary:304 Stainless steel with stainless steel spring armor,or 316 stainless steel with stainless steel interlocking armor.
Pointer:Adjustable ,balanced aluminum with matte black or red polish.
Temperature Range :-40~60℃, -20~60℃, 0~120℃, 0~150℃, 0~200℃, 0~300℃, 0~400℃, 0~500℃, 50~300℃/-40~160℉, 0~100℉, 0~220℉, 20~240℉, 25~125℉, 50~400℉, 50~500℉, 50~600℉, 50~750℉
Accuracy:±1.5%
Gas Filled Thermometers(bottom connection)
Type  Size
Diameter A
(mm) B
(mm) D
(mm)   G  d
(mm)
BY301 3”/75mm 50 104 Ф84 1/2”NPT
3/4”NPT
1/2”BSP
3/4”BSP
 Ф 6
Ф 8
Ф 10
Ф 12
Ф 14
BY302 4”/100mm 50 140   Ф110
BY303 6”/152mm 50 195 Ф160
The ‘L’ and ‘I’can be made according to the customer’s demands

Gas Filled Thermometers(back connection)
Type  Size
Diameter A
(mm) B
(mm) D
(mm)   G  d
(mm)
BY 2.5”/63mm 31 67 Ф60 1/2”NPT
3/4”NPT
1/2”BSP
3/4”BSP
  Ф 6
Ф 8
Ф 10
Ф 12
Ф 14
BY304 3”/75mm 50 20 Ф84
BY305 4”/100mm 50 20   Ф110
BY306 6”/152mm 50 20 Ф160
The ‘L’ and ‘I’can be made according to the customer’s demands
