Industry Bimetal Thermometers (1)
This kind of thermometers is ideal for most rugged industrial temperature measurement application ,such as in Chemical and petrochemical industry,Machine and apparatus construction ,Food and beverage industry & Pulp and paper industry .The hermetically-sealed case offers proteciton from weather and dust ,and is guaranteed against fogging up.The Bimetal helix is coated with a viscous silicone to minimize pointer oscillation and improve temperature transmission.There are three types of Industry Bimetal Thermometers with different connection.

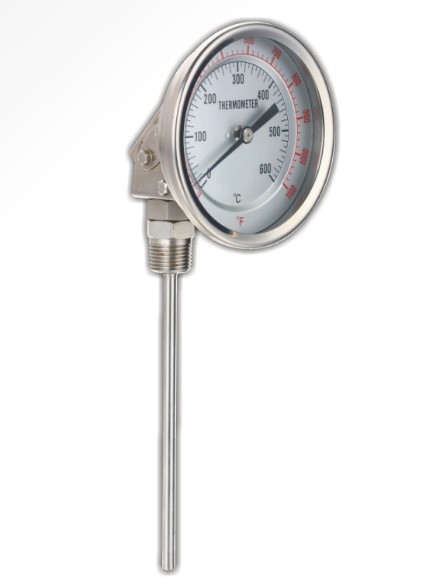

1. All Angle Adjustable Connection
Standard Features
All Angle Case: Simple adjustment of the heavy duty staimnless steel harness allows case rotation of 360°and stem variation of more than 180°.Flexible stainless steel bellows sealed at case and stem connector protects the temperature transmission mechanism and guarantees the hermetic steel
Dial:Heavy gauge aluminum with white matte finish
Shell:Fully glass standard ,Lexan,acrylic and shatterproof available.
Stem:304 stainless steel ,as well as 316 stainless steel welded at tip and case connection
Temperature Range :-40~60℃, -20~60℃, 0~120℃, 0~150℃, 0~200℃, 0~300℃, 0~400℃, 0~500℃, 50~300℃/-40~160℉, 0~100℉, 0~220℉, 20~240℉, 25~125℉, 50~400℉, 50~500℉, 50~600℉, 50~750℉
Pointer:Adjustable ,balanced aluminum with black or red finish
Screw:304 Stainless Steel

Type  Size
Diameter D
(mm) A
(mm) B
(mm) C
(mm)
   G  d
(mm)
BY201 3”/75mm Ф83 17  75  25 1/2”NPT
3/4”NPT
1/2”BSP
3/4”BSP
  Ф 6.3
BY202 4”/100mm Ф118  18  75   25  Ф 6.3
BY203 5”/127mm Ф128  18   75  25  Ф 6.3
BY204 6”/152mm Ф 160  25 75 25  Ф 6.3
The ‘L’can be made according to the customer’s demands and the ‘d’can be changded toФ 8, Ф 10
