Products > Pressure gauge > Filled pressure gauge > JZ-35

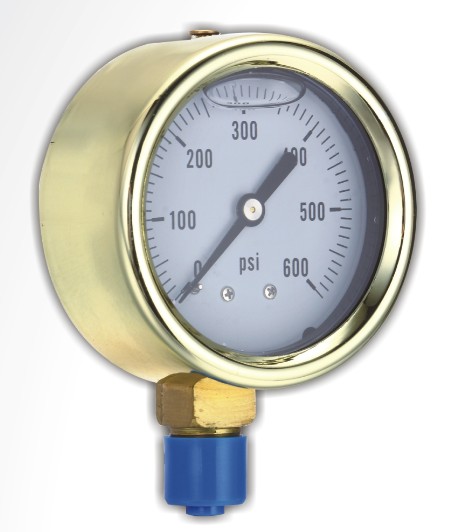

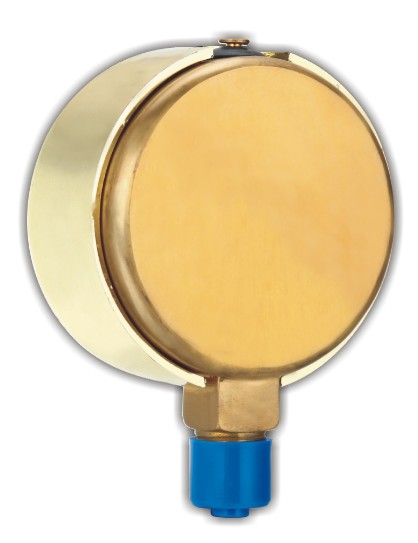

Product name : JZ-35

Item : JZ-35

Enlarge Image

Back

[Next Product]→

Details:

Size: 2.5”
Pressure Range: From 30inHg to 10000Psi
Socket: Brass material
Thread: BSP,NPT,BSPT,PT,ZG,and other special specification
Bourdon Tube: Phosphor bronze or Stainless Steel material
Case : All brass material
Bezel: Yellow colored plastic bezel
Window: PC lens or glass lens
Dial Plate: Single ,dual or three scales(Bar, Psi, Kg/C㎡, Kpa, Mpa)
Accuracy: 3-2-3%,2.5%,1.6%

Movement: Steel,brass or Stainless Steel material

Pointer: Aluminium

Restrictor: Brass or St St material
Over Pressure: 130%
Connection Type: Connection with the case together
